M1 SMARTBOX® Touch Screen Cage Systems (20-40 Cage Capacity)

Available with up to 2 Chambers to accommodate up to 40 shoebox mouse cages or 8 standard rat cages.

Shipping charges must be quoted on large chamber systems.

Add on our Mobile Cart below

Clear

Smartbox Chamber Accessories

Enables double stacking of cages without wire bar lids in Smartbox chamber. Factory set for your cage height. Stainless steel construction. Includes 2 shelves and 4 side rails.

For use with the EZ-1336 Mobile Cart. Attaches securely to the lower level of the cart for additional storage.

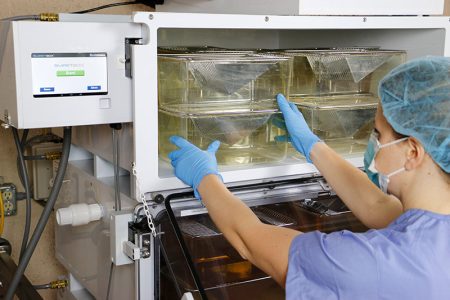

Allows for convenient cage loading and unloading of M1 chamber. Removable stainless steel shelve for SMARTBOX M1 and MSVF Systems.

Smartbox Chamber Shelves

Enables double stacking of cages without wire bar lids in Smartbox chamber. Factory set for your cage height. Stainless steel construction. Includes 2 shelves and 4 side rails.

Allows for convenient cage loading and unloading of M1 chamber. Removable stainless steel shelve for SMARTBOX M1 and MSVF Systems.

Product price
Additional options total:
Order total:
SKU: M1-TS-XX Category:

Description

M1 Touch Screen Chamber Systems

Compliant with AVMA Guidelines

  • Available with up to 2 Chambers to accommodate up to 40 shoebox mouse cages or 8 standard rat cages

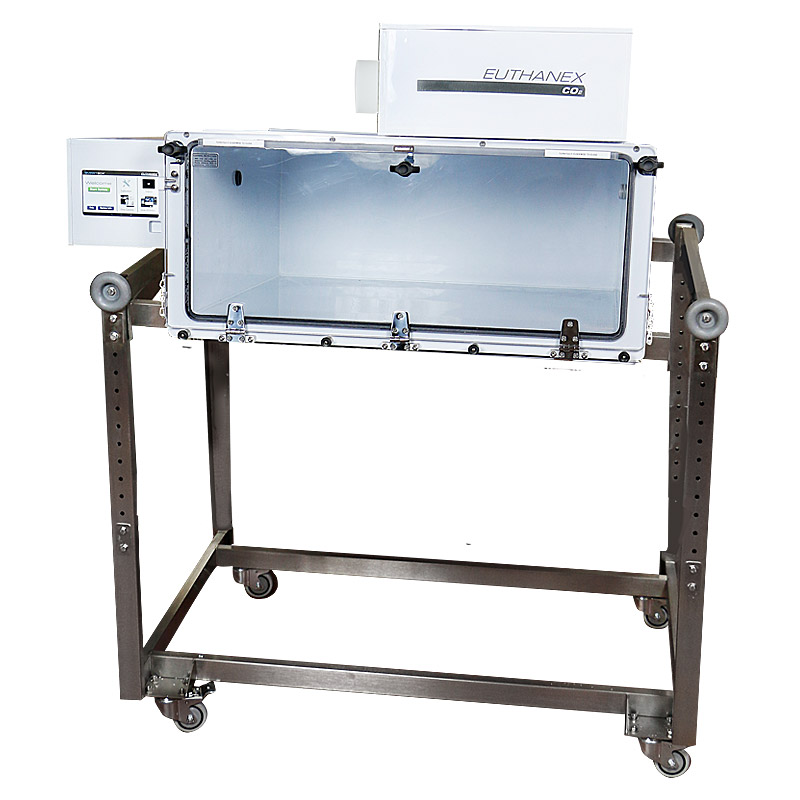

    M1-TSFM-1  (20 mouse/4 rat cages)

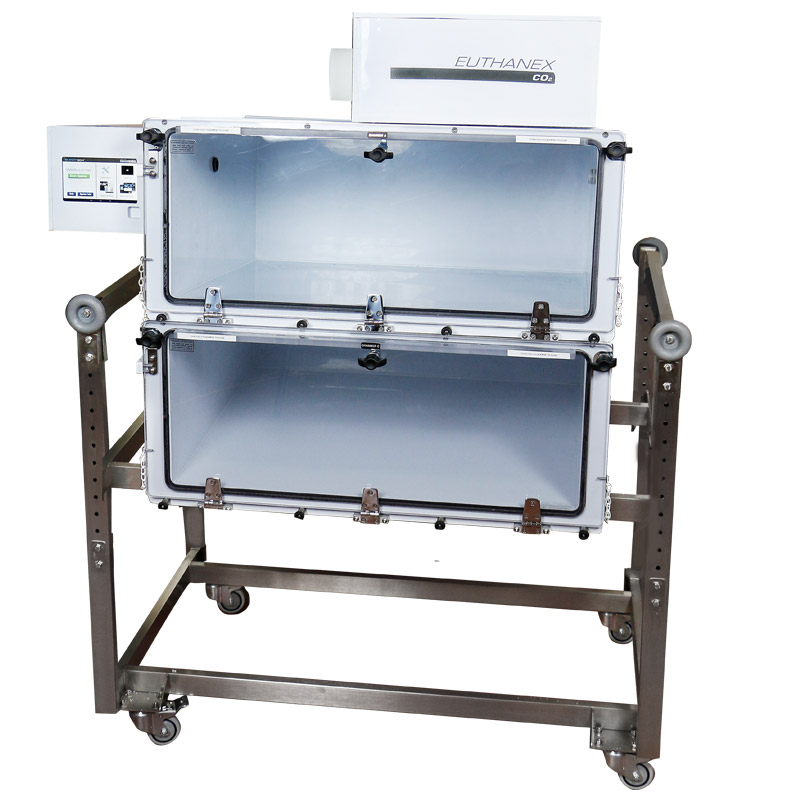

    M1-TSFM-2  (40 mouse/8 rat cages)
  • Independent level operation increases efficiency
  • Touch screen controller facilitates easy operation and includes training videos
  • Automation virtually eliminates operator error and conserves CO2 consumption
  • After starting system, technician is free to do other work
  • Customize your programs based on facility requirements
  • Password-protected presets ensure only authorized personnel can make program changes
  • Input unlimited species and users
  • Limit user access to designated species
  • Electronically monitored safety system prevents operation when chamber doors are not properly closed
  • Doors automatically lock during operation and unlock after evacuation
  • Gas is fully evacuated if system shuts down before cycle completion
  • Log program records users and all activities performed

Latest addition to our Smartbox family

Operators now have individual control of each chamber allowing simultaneous selection of different species. The new triple chamber system features a 1080 dpi color touch screen. This new feature allows administrators to program unlimited species types and users. The administrators now have the power to add secondary CO2 charges and dwell periods for any species that may require longer exposure. Assign users independent passwords and the administrator can grant access to specific species type. This feature is appealing when the entire facility has access to the Smartbox system. The new controller also includes Wi-Fi allowing for simple remote access. Administrators now can access log reports to all their systems online. How to videos are installed for easy training for new personal.

M1-TSFM-1 includes:
SMARTBOX  Side Control Box, FM-1 Flow Meter, one M1 Chamber, Exhaust Blower, 8 feet of 4″ Exhaust Tubing, two 4″ Hose Clamps (Cart sold separately)

M1-TSFM-2 includes:
SMARTBOX  Side Control Box, FM-1 Flow Meter, two M1 Chambers, Exhaust Blower, 8 feet of 4″ Exhaust Tubing, two 4″ Hose Clamps (Cart sold separately)

Additional information

Number of Chambers

1 Chamber (20 Mouse/4 Rat Cages), 2 Chambers (40 Mouse/8 Rat Cages), 3 Chamber (60 Mouse/12 Rat Cages), 4 Chambers (80 Mouse/16 Rat Cages)

Mobile Cart

3 Chamber Cart Included, No Cart, Add EZ-1336-C Mobile Cart – $2200.00

Tank Talker Add on

Add Tank Talker – $865, No Tank Talker

REQUIRED ACCESSORIES

These products may be required for use with your SMARTBOX® M1 CHAMBER SYSTEM

GAS REGULATION/CONTROL

For Single Chamber

EA-550 Regulator – (0 – 100 PSI Output) – EA-550 Connects directly to the CO2 cylinder with CGA-320 fitting.  Capable of handling high flow rates. Incorporated electric heater keeps unit from freezing during operation.

For Dual Chamber

EA-275-DUAL Heater Assembly – (0 – 200 PSI Output) – The EA-275-DUAL is a thermostatically-controlled CO2 heater assembly that prevents freeze-ups caused by high flow rates. For use with two CO2cylinders simultaneously. Incorporates check valve in stainless steel jacketed hose.

For Dual Chamber

EA-6500 Multi Tank Heater Assembly – (0 – 200 PSI Output) – The perfect solution for high volume Euthanasia Systems. You can safely deliver the new 30% – 70% flow rate for AVMA compliance. Multiple tanks are required to achieve these higher than 65lpm flow rates. The EA-6500 heater helps prevents tank freeze ups when delivering the new higher flow rates.

FF-1130 Fixed Flow Connection HoseConnects house gas source to Fixed Flow Chamber Systems. Required accessory to M1-SBFF-1FM and M1-SBFF-2FM Systems when connecting to house gas source.
