M1-SBFF SMARTBOX® Push Button Chamber System (20-40 Cage Capacity)

SMARTBOX® Fixed Flow Chamber Systems with Flow Meter automate a three-stage euthanasia cycle at the push of a button.



Clear

Smartbox Chamber Accessories

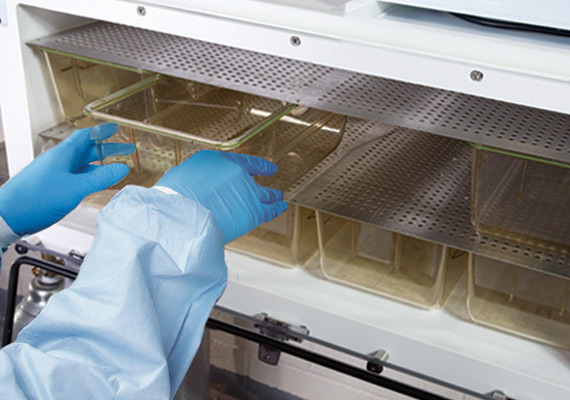

Enables double stacking of cages without wire bar lids in Smartbox chamber. Factory set for your cage height. Stainless steel construction. Includes 2 shelves and 4 side rails.

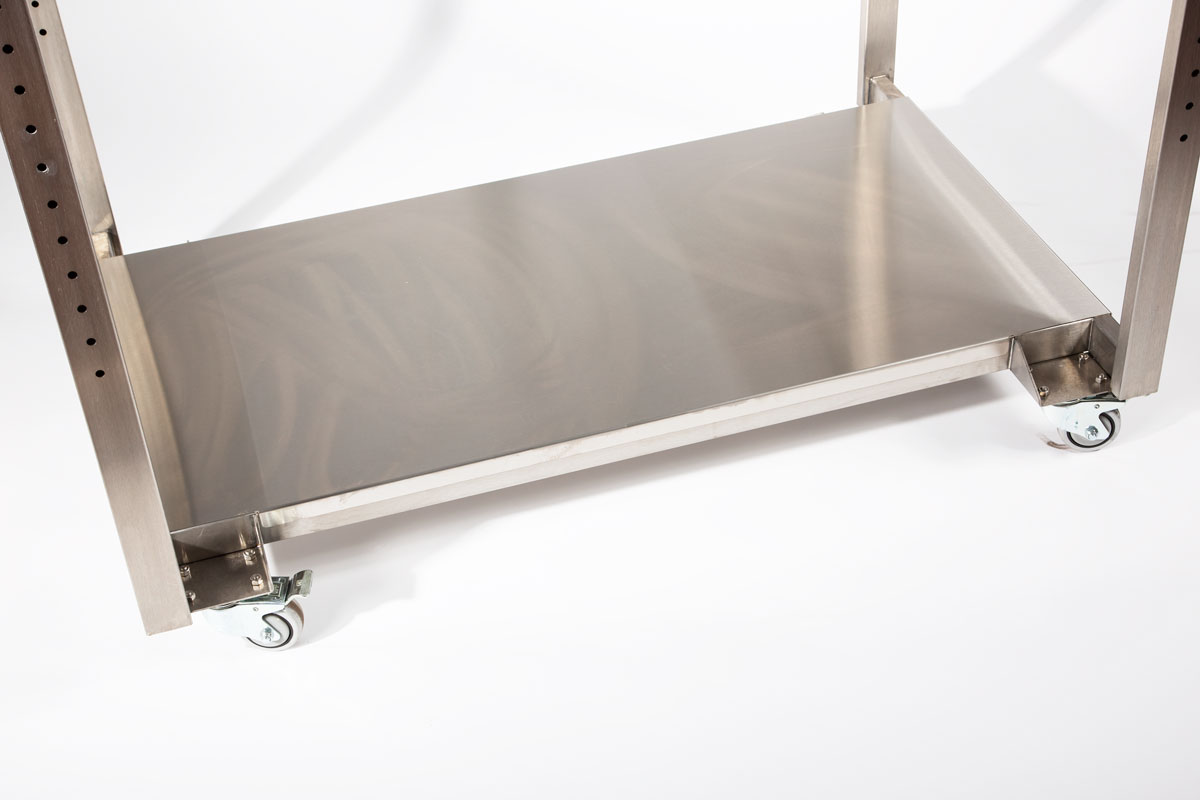

For use with the EZ-1336 Mobile Cart. Attaches securely to the lower level of the cart for additional storage.

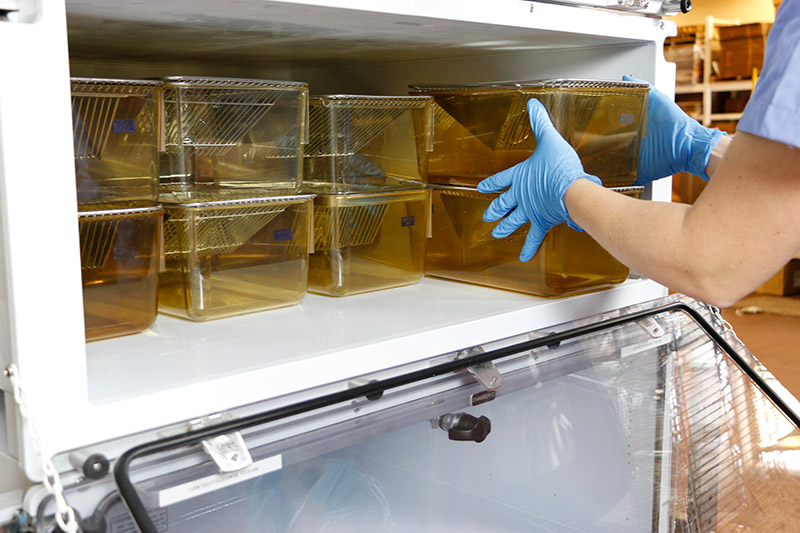

Allows for convenient cage loading and unloading of M1 chamber. Removable stainless steel shelve for SMARTBOX M1 and MSVF Systems.

Smartbox Chamber Shelves

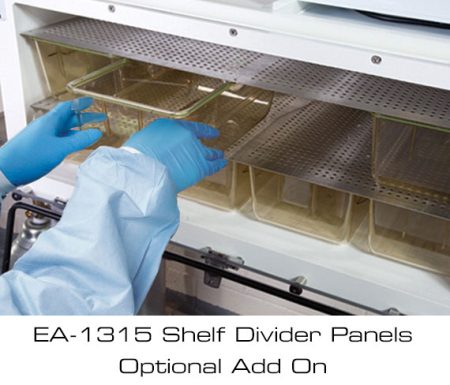

Enables double stacking of cages without wire bar lids in Smartbox chamber. Factory set for your cage height. Stainless steel construction. Includes 2 shelves and 4 side rails.

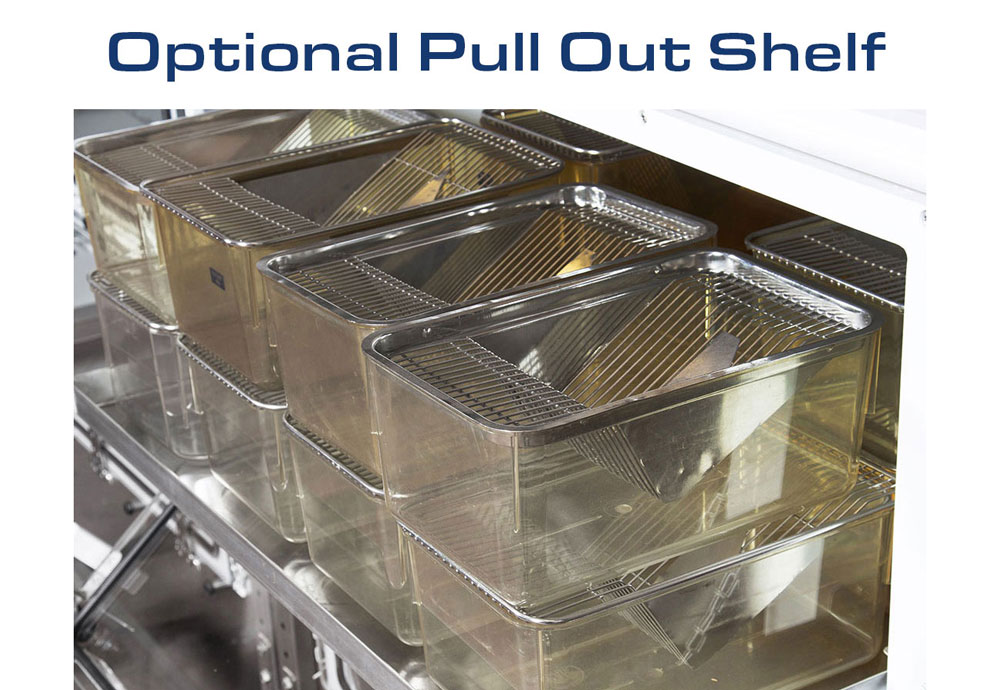

Allows for convenient cage loading and unloading of M1 chamber. Removable stainless steel shelve for SMARTBOX M1 and MSVF Systems.

Product price
Additional options total:
Order total:
SKU: N/A Category: Tag:

Description

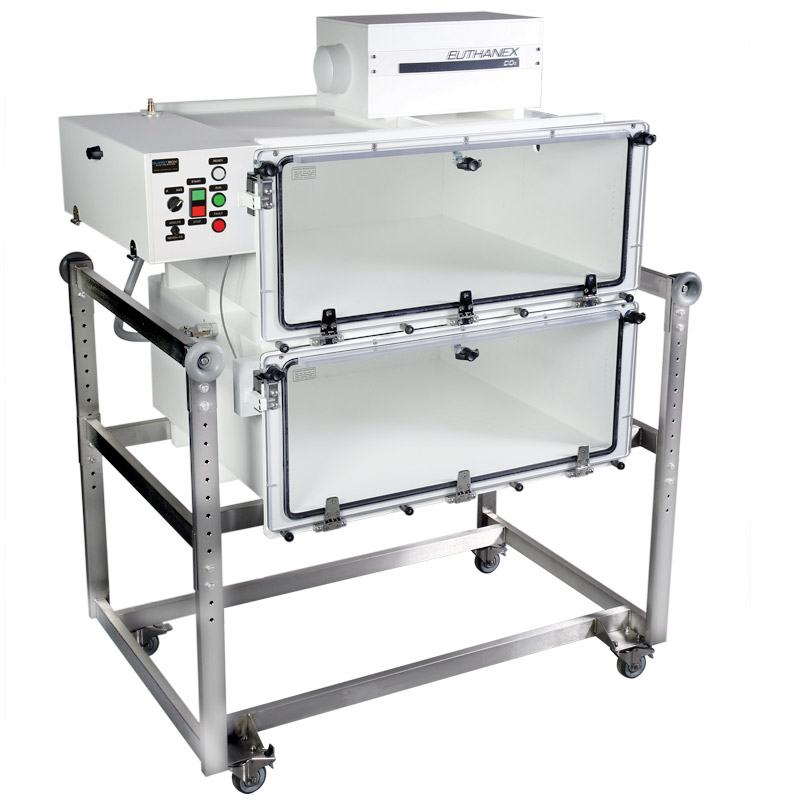

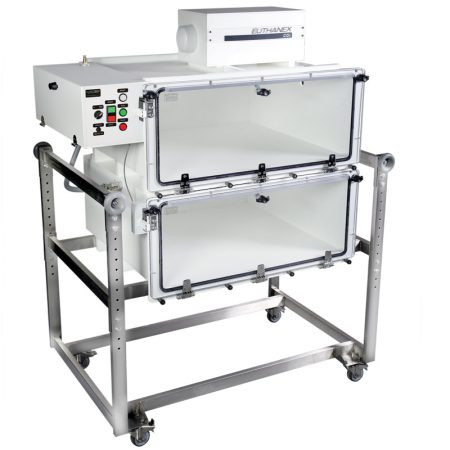

M1-SBFF  SMARTBOX® Chamber System with Flow Meter

Compliant with AVMA Guidelines

  • Accommodates up to 40 shoebox mouse cages or 8 standard rat cages
    M1-SBFF-1FM (20 mouse/4 rat cages)
    M1-SBFF-2FM (40 mouse/8 rat cages)
  • Operates either one or both chambers
  • After starting system, technician is free to do other work
  • Presets can be customized based on facility requirement
  • Automation virtually eliminates operator error
  • Electronically monitored safety system prevents operation when chamber door is not properly closed
  • Doors automatically lock during operation and unlock after evacuation
  • Two preset times – adult and neonate

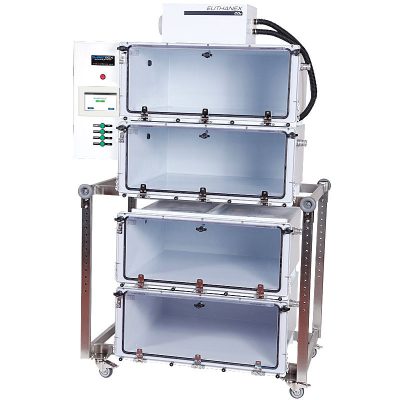

The M1-SBFF SMARTBOX® Chamber System with Flow Meter automates a three-stage euthanasia cycle at the push of a button: charging, dwell time, and exhaust. At the start of a cycle, doors automatically lock and will not unlock until CO2 evacuation is complete. The clear polycarbonate doors provide visibility while the front-loading, swing-down design offers easy cage access. Airtight, gasket-sealed doors prevent gas leakage during operation. The manifold design ensures even gas distribution. The system accommodates the full range of rodent cages from all manufacturers. The M1-SBFF Chamber System is designed for use with house supplied gas. The EA-550 Heated Regulator is required to use the M1-SBFF Single Chamber System with CO2 cylinders. For the Dual Chamber System, an EA-275-DUAL Heater Assembly or EA-6500 Multi Tank Heater Assembly is required to use with CO2 cylinders.



M1-SBFF-1FM includes:

  • SMARTBOX Side Control Box
  • M1 Chamber
  • FM-1 Flow Meter
  • Exhaust Blower
  • 8 feet of 4″ Exhaust Tubing
  • two 4″ Hose Clamps

*Cart sold separately



M1-SBFF-2FM includes:

  • SMARTBOX Side Control Box
  • FM-1 Flow Meter
  • two M1 Chambers
  • Exhaust Blower
  • 8 feet of 4″ Exhaust Tubing
  • two 4″ Hose Clamps

*Cart sold separately

Additional information

Number of Chambers

1 Chamber (20 Mouse/4 Rat Cages), 2 Chambers (40 Mouse/8 Rat Cages)

Mobile Cart

Add EZ-1336-C Mobile Cart – $2200.00, No Cart

REQUIRED ACCESSORIES

These products may be required for use with your SMARTBOX® M1 CHAMBER SYSTEM

GAS REGULATION/CONTROL

For Single Chamber

EA-550 Regulator – (0 – 100 PSI Output) – EA-550 Connects directly to the CO2 cylinder with CGA-320 fitting.  Capable of handling high flow rates. Incorporated electric heater keeps unit from freezing during operation.

For Dual Chamber

EA-275-DUAL Heater Assembly – (0 – 200 PSI Output) – The EA-275-DUAL is a thermostatically-controlled CO2 heater assembly that prevents freeze-ups caused by high flow rates. For use with two CO2cylinders simultaneously. Incorporates check valve in stainless steel jacketed hose.

For Dual Chamber

EA-6500 Multi Tank Heater Assembly – (0 – 200 PSI Output) – The perfect solution for high volume Euthanasia Systems. You can safely deliver the new 30% – 70% flow rate for AVMA compliance. Multiple tanks are required to achieve these higher than 65lpm flow rates. The EA-6500 heater helps prevents tank freeze ups when delivering the new higher flow rates.

FF-1130 Fixed Flow Connection HoseConnects house gas source to Fixed Flow Chamber Systems. Required accessory to M1-SBFF-1FM and M1-SBFF-2FM Systems when connecting to house gas source.

Videos

M1-SBFF-1FM Setup and Operations

M1-SBFF-2FM Setup and Operations

Data Sheets/Manuals

View and download pdf spec sheets.

M1-SBFF-1FM

M1-SBFF-2FM

Setup and User Manual
