AD-5000 Digital Anesthesia System

E-Z Anesthesia takes the vaporizer to the next level. In an era of advancing technology, our customers requested that the vaporizer follow the digital trend. E-Z Anesthesia merges the best of both worlds to create a very reliable, user-friendly, state-of-the-art system.

Complete your system by choosing the bed types/sizes you want for each output Plus add the Tank Talker option(see description below).

Clear

Description

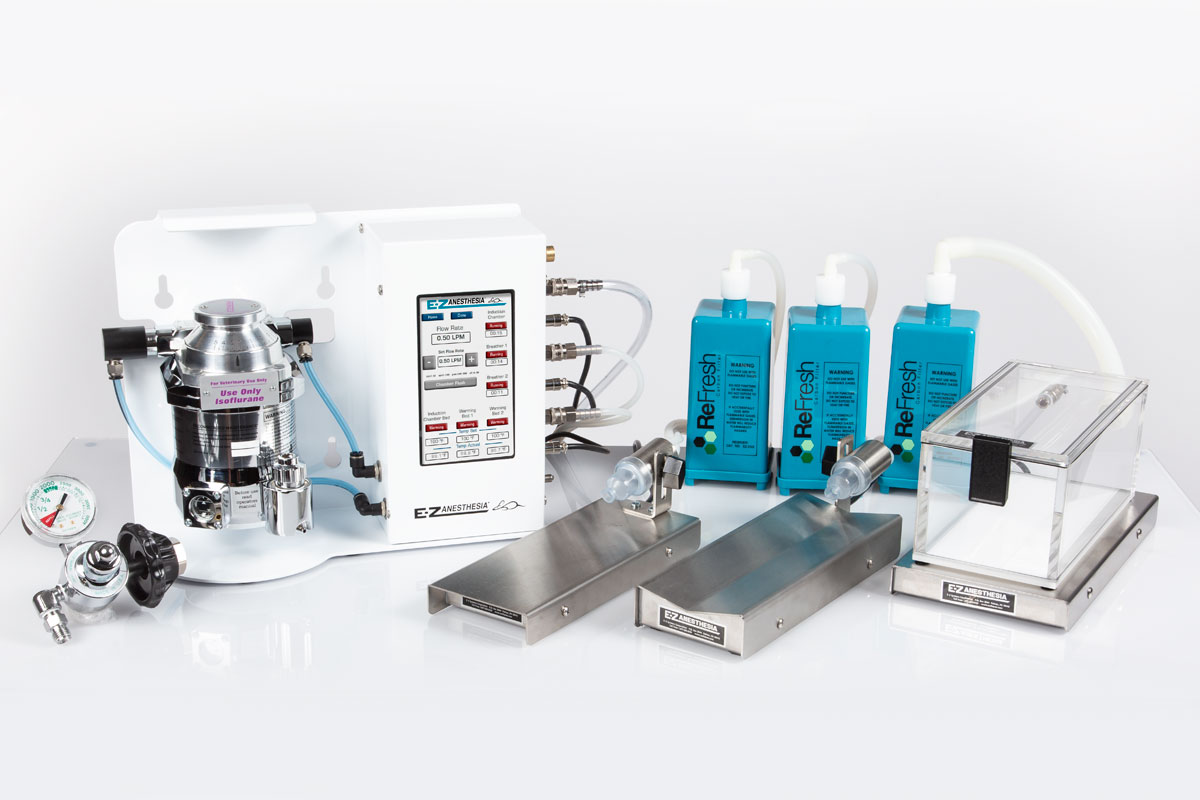

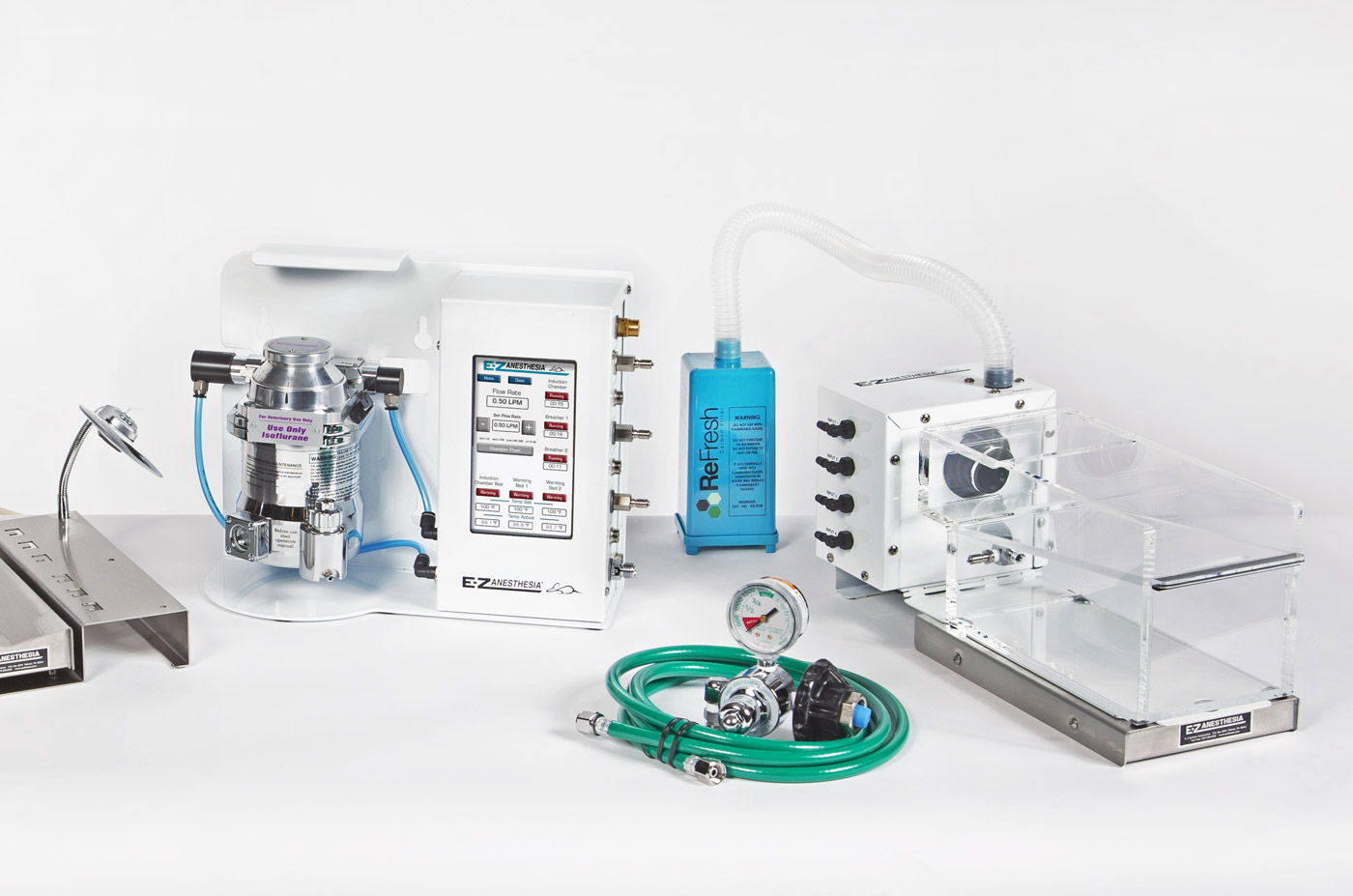

AD-5000 EZ-Anesthesia Digital Anesthesia System

E-Z Anesthesia takes the vaporizer to the next level. In an era of advancing technology, our customers requested that the vaporizer follow the digital trend. E-Z Anesthesia merges the best of both worlds to create a very reliable, user-friendly, state-of-the-art system. Other systems that rely on a fully electronic vaporizer limit the user to a single output and require constant monitoring for optimal results. E-Z Anesthesia’s AD-5000 Digital Anesthesia System uses the always reliable TEC 3 vaporizer as our cornerstone and enhanced its features with a digital interface.

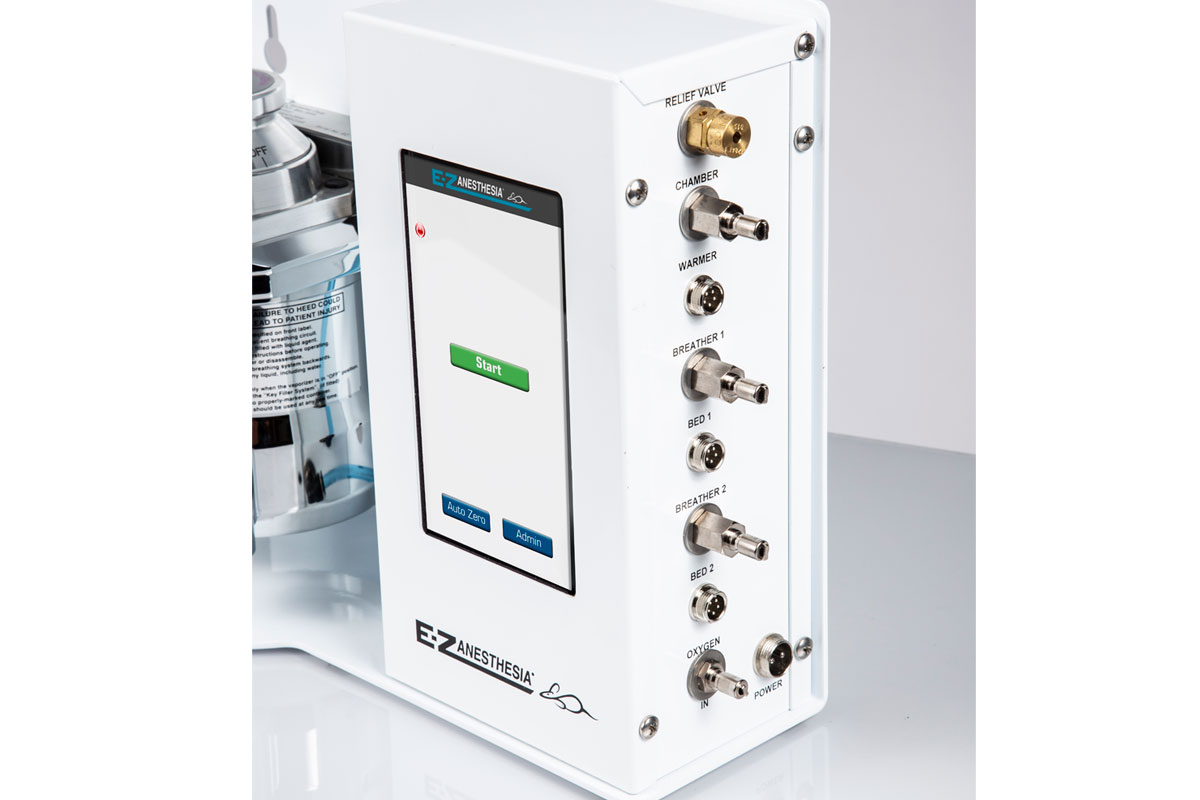

Vivid 7″ Touch Screen

The Digital Anesthesia System incorporates a vivid touch screen that allows the operator to have a full range of exciting features. Our exclusive digital flow control gives the user a precise range of 0.5 to 2.5 lpm flow rate per connection. Not limited to a single output. The user can run an induction chamber with two additional breathing circuits simultaneously. This machine allows the user to choose any combination of outputs while our digital flow control automatically adjusts for the correct flow rates. The induction chamber incorporates an automatic flush button to prevent undesired exposure when transferring animals. The induction chamber and breathing circuits includes individual timers for accurate monitoring and prevention of over exposure to the patients.

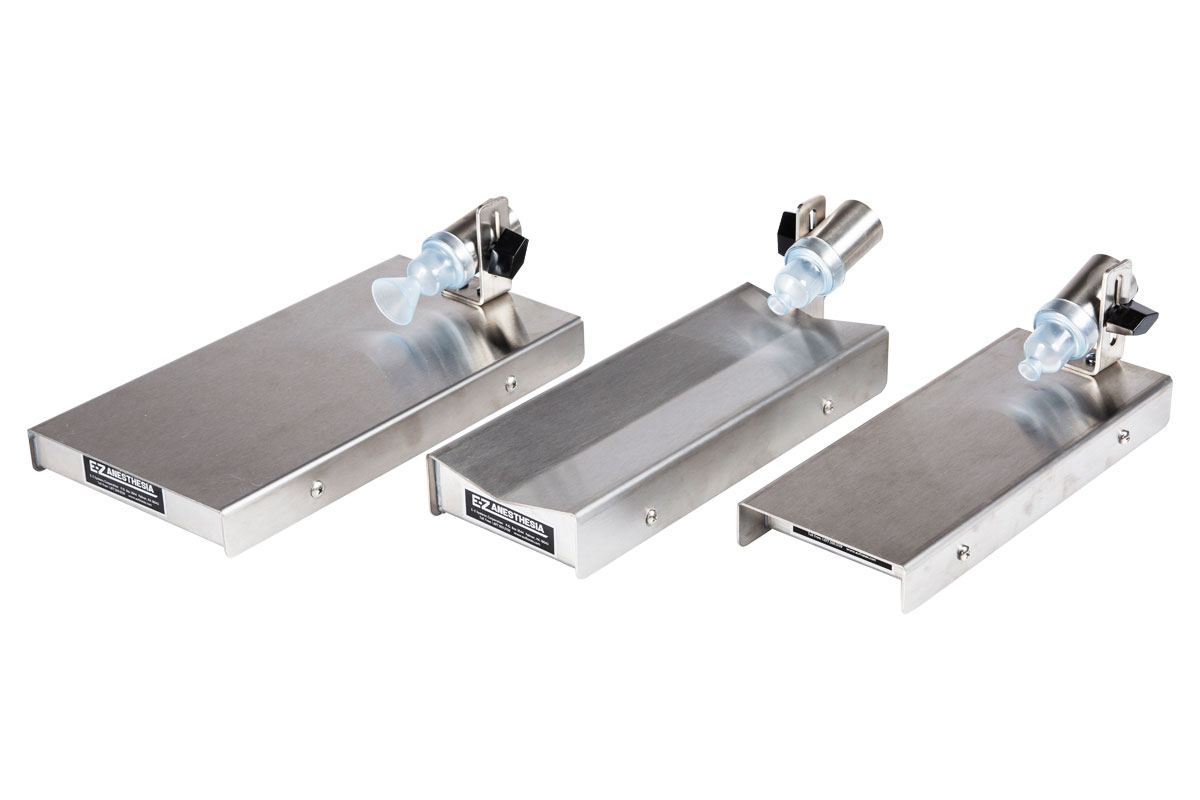

New Digital Warming Surgery Beds

Our system includes all new digital warming beds to help maintain the patient’s body temperature during surgical procedures. The patented warming system allows the user to heat the induction chamber and breathing circuits. The warming beds range from 95 to 105 degrees Fahrenheit or 35 to 40 degrees Celsius with easy adjustability to maintain the desired temperature. Each of the warming circuits displays the set temperature and can be independently adjusted. When all procedures are complete, simply press the “Done” button to systematically shut down in the proper sequence to ensure a longer life for your system.



What’s Included

  • Digital Anesthesia Vaporizer Machine
  • Oxygen or Air Regulator
  • 1 EZ-178 Induction Chamber
  • 1 HB-163 Chamber Warmer
  • 2 Surgery Beds with Breathers – Flat or V-Shaped
  • 2 Mouse and 2 Rat Nosecones with Plugs
  • 1 Case of Refresh Charcoal Filters



Optional Tank Talker

EA-300 Tank Talker Wireless Tank Monitor Option





 Tank Talker Monitor System Features:

  •  Easy setup
  • Connects to wifi for email alert features
  • Remotely access your tank levels
  • Will adapt to existing regulators (regulator not included)
  • 1/4” NPT thread
  • Monitors two gas sources simultaneously
  • Fully adjustable alarm settings
  • Email alerts notify user of the location and remaining pressure
  • Visual & audio alarm displayed on Touch Screen

Additional information

Breather Bed 1

Flat Bed 4" x 10", V-Shaped Bed 4" x 11", XL Heating Bed 11"x6"

Breather Bed 2

Flat Bed 4" x 10", V-Shaped Bed 4" x 11", XL Heating Bed 11"x6"

Tank Talker Add on

Add Tank Talker – $865, No Tank Talker

Data Sheets/Manuals

Download Data Sheet
