EA-31000 Single Cage Output – Single Preset Time

Product price
Additional options total:
Order total:
SKU: EA-31000 Category:


EA-31000 Lab Control Unit

(Single Cage Output – One Programmable Timing Preset)

Compliant with AVMA Guidelines

  • Treats animals at individual cage level
  • Designed for investigators that need to retrieve animals quickly
  • Utilizing the full range of Euthanex lids or induction chambers
  • Minimizes operator error and excessive gas use
  • Automatic shut-off saves gas and protects personnel
  • Lights indicate cycle completion
  • Easily attaches to wall

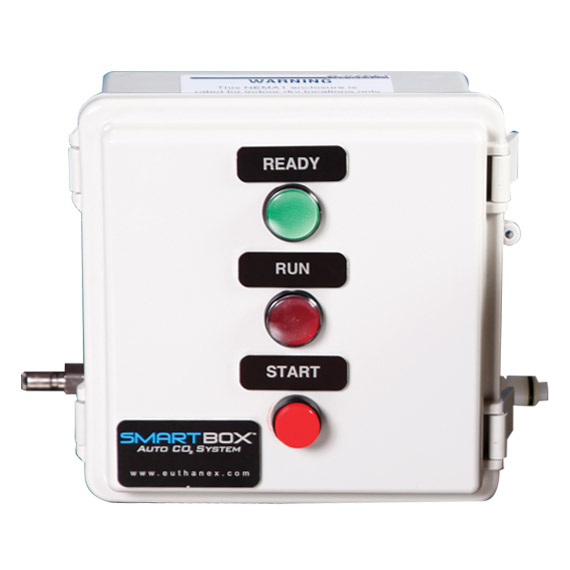

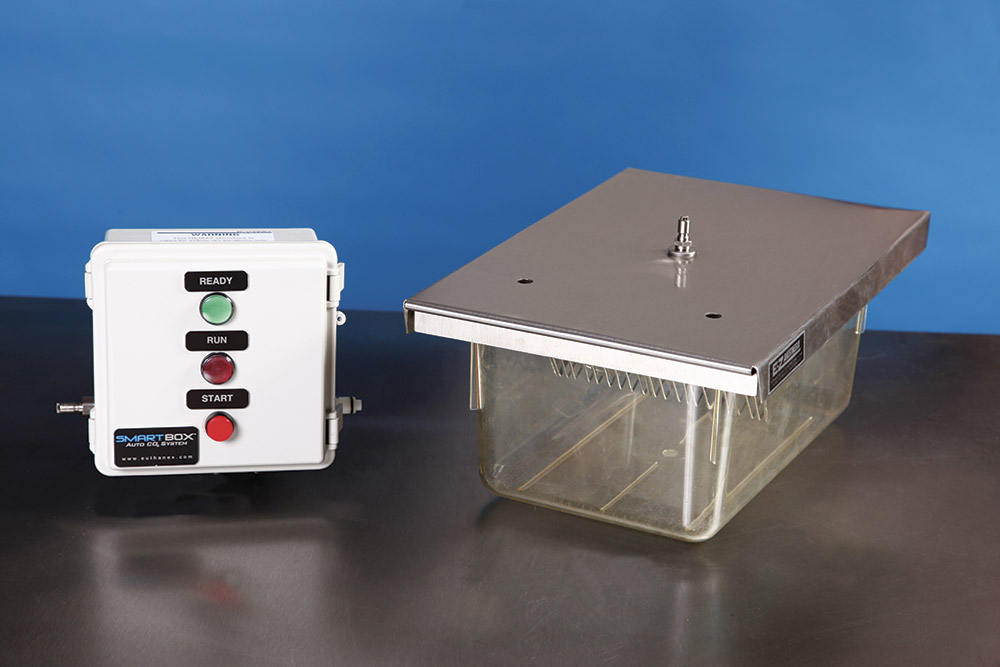

The EA-31000 Lab Control Unit is an economical unit. It is designed for small scale use by individual investigators in their laboratories. The Controller automates on/off gas flow at the push of a button, delivering CO2 to an individual cage or Euthanex lid. The EA-31000 has a single gas output and includes one programmable charge and dwell timing preset. The run and ready lights visually indicate operation and completion. Operates at a fixed flow rate based upon the external CO2 source.


EA-31000 includes:
SMARTBOX® Lab Control Unit and one EA-1130 Lab Unit Hose (Lid sold separately)


These products may be required for use with your SMARTBOX Controllers

Gas Regulation/Control

EA-285 Regulator – Heated High Flow – 12 – 60LPM Output
EP-1305 Low Flow CO2 Regulator 0.5 – 12 LPM Output

Euthanex Lids

Euthanex Lids allow for the treatment of animals in their home cages and are available in a range of sizes.

Flow Restrictors

Flow Restrictors avoid the need to adjust the flow rate due to change in cage number and ensures AVMA compliance of CO2 flow using a set pressure.


Data Sheets/Manuals

View and download pdf spec sheets.


Setup and User Manual
