EZ-HHCO2 Handheld CO2 Meter

Description

EZ-HHCO2

Up to 100% concentration

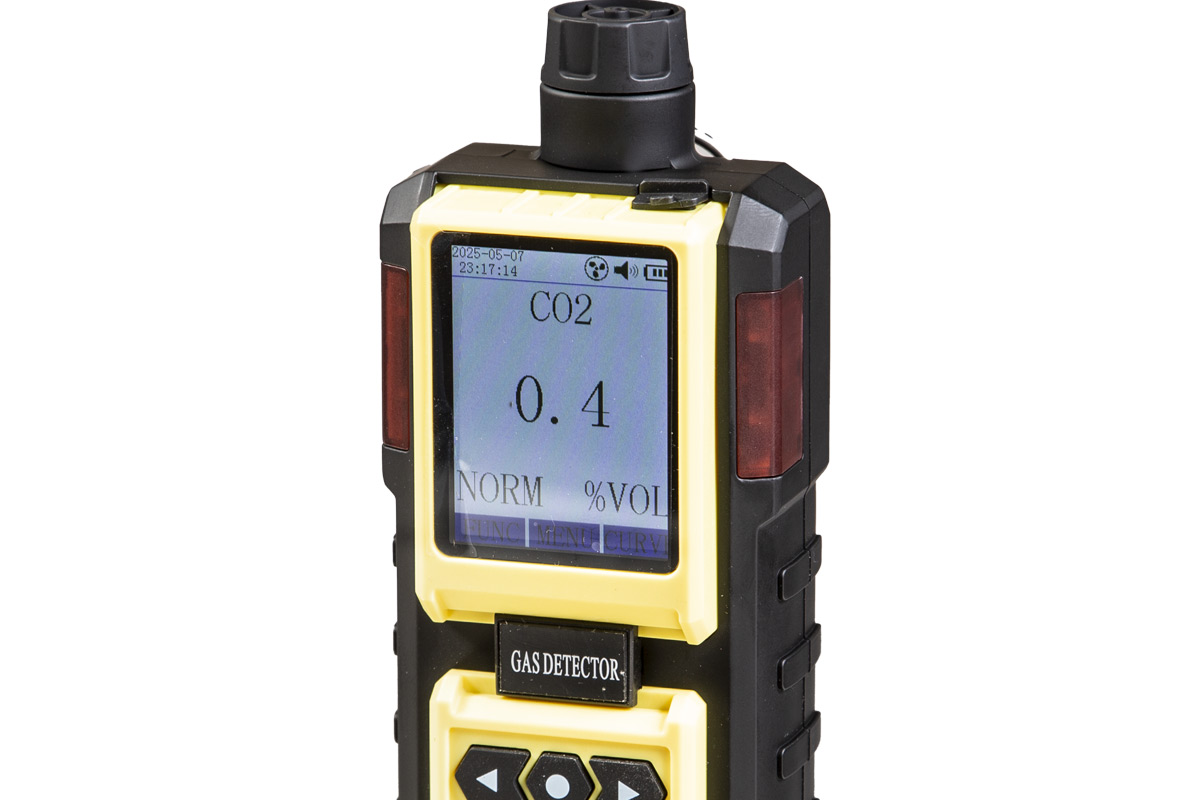

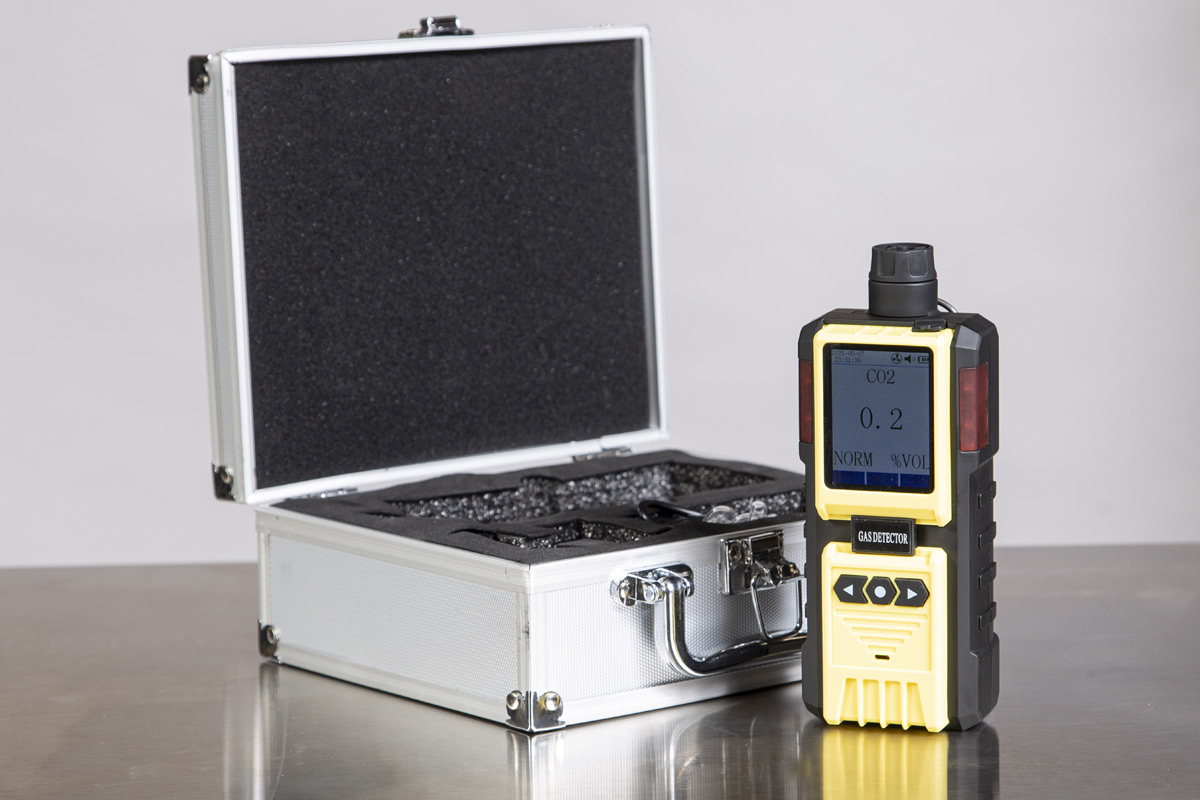

Our portable, battery-powered 100% CO₂ sampling meter is designed to measure carbon dioxide in enclosed environments or inaccessible areas. Use it for CO₂ applications like SMARTBOX^® verification, cage levels, and induction chambers. Place meter directly inside the chamber or vessel, or connect tubing to input port and sample from outside the area.



Features:

Advanced MCU for Low-Power Consumption LCD display

Self-Test Function

Adjustable alarms

Two Instant Alarm Points

Audio, Visual LED and Vibratory Indicators

Three buttons Operation for Simple Use

Strong, Durable Rubber Casing Provides Anti-Slip Handleability

Module monitoring, Sensor setup, Alarm record

Colorful LCD gas curve display

Rechargeable



Range: CO₂: 0 – 100% VOL

Alarm Point: CO₂: 20% and 50% VOL

Method of Detection: pump sampling

Sensor: IR sensor Display: 2.4 inch colored LCD

Temperature: -10 – 50oC

Humidity: 5 to 95% RH, non-condensing

Power: 3.7VDC 3600mA rechargeable lithium battery

Operating time: Approximately 15 hours Continuous, non-alarm conditions

Charge Time: 4-6 hours

Dimensions: 174mm x 68mm x 47mm

Weight: 210g
